Sheet Metal Fabrication Quality Control: A Complete Guide

Quality control in sheet metal fabrication is really important to ensure precision, reliability, and compliance in manufacturing industries such as aerospace, automotive, electronics, and construction. The quality of fabricated sheet metal components directly impacts the safety and performance of the final products. Implementing rigorous quality control measures minimizes defects, enhances efficiency, and ensures adherence to industry standards. This article explores key aspects of quality control in sheet metal fabrication, highlighting best practices, industry regulations, and advanced inspection techniques.

Key Stages of Quality Control in Sheet Metal Fabrication

Quality control isn’t a single inspection at the end of the line; it’s a multi-stage process meticulously integrated throughout the entire fabrication workflow. This proactive approach minimizes errors, reduces waste, and ensures that the final product meets the required specifications. The key stages of this process include:

Material Selection and Inspection

The quality of the final product starts with selecting the right raw materials. High-grade metals ensure durability, strength, and resistance to environmental factors such as corrosion. Quality control in material selection involves verifying supplier certifications, conducting mechanical and chemical testing, and ensuring full traceability. Material properties such as tensile strength, hardness, and surface quality must be rigorously inspected. Any deviations from required specifications can compromise the integrity of the entire fabrication process, making this stage a critical component of quality assurance.

Welding and Assembly Standards

The welding and assembly phase requires strict adherence to industry standards to ensure structural integrity and durability. Proper welding procedure specifications (WPS) must be followed to prevent weak joints, porosity, and excessive heat distortion. Quality control involves visual inspections, non-destructive testing methods such as ultrasonic and X-ray testing, and stress testing to confirm joint strength. Consistency in weld bead appearance and penetration depth is necessary for maintaining product reliability. Automated robotic welding systems further enhance precision and repeatability in large-scale manufacturing.

Precision in Cutting and Shaping

Accurate cutting and shaping processes are fundamental in achieving consistent and high-quality fabricated components. Advanced manufacturing methods such as laser cutting, waterjet cutting, and CNC punching ensure high precision. The calibration of these machines is essential to maintaining tight tolerances. Regular quality checks must be conducted to verify edge smoothness, dimension accuracy, and heat distortion. Ensuring clean and burr-free cuts improves both the functionality and aesthetic quality of the product while reducing secondary processing time.

Dimensional Accuracy Verification

Ensuring dimensional accuracy is crucial for components that must fit seamlessly within larger assemblies. Measurement techniques such as coordinate measuring machines (CMMs), laser scanning, and first article inspections help maintain precision. Quality control engineers use advanced metrology tools to validate part dimensions against CAD designs, ensuring all tolerances meet exact specifications. Statistical process control (SPC) is also employed to detect manufacturing variations early and minimize defects in production.

Surface Treatment and Finishing

The longevity and performance of sheet metal components depend on their surface treatment and finishing. Quality control measures ensure that coatings such as powder coating, anodizing, and electroplating are applied evenly and provide adequate protection against wear and corrosion. Coating thickness is measured to ensure consistency, while adhesion and corrosion resistance tests confirm durability. Any surface imperfections, such as cracks, uneven coatings, or discoloration, must be identified and corrected before final assembly.

Final Product Testing

Before shipment, the fabricated sheet metal components undergo rigorous final testing to validate their performance and durability. Structural integrity tests, such as load and stress testing, ensure the product can withstand operational demands. Functional fit testing verifies that parts assemble correctly without misalignment. Environmental testing exposes components to extreme conditions, assessing their resilience against temperature variations, humidity, and chemical exposure. Comprehensive documentation and reporting provide traceability, ensuring compliance with industry and client requirements.

Some Quality Control Techniques

Modern quality control in sheet metal fabrication incorporates advanced technologies to enhance accuracy, efficiency, and reliability. Key techniques include:

Automated Optical Inspection (AOI)

Automated Optical Inspection (AOI) is an advanced quality control technology that uses high-resolution cameras and machine vision algorithms to detect defects in sheet metal components. By capturing detailed images of fabricated parts, AOI systems can quickly identify surface flaws, dimensional inconsistencies, and alignment issues during production. Modern AOI solutions increasingly integrate artificial intelligence to improve defect recognition and reduce false detections, allowing manufacturers to maintain consistent quality even in high-volume manufacturing environments. Key advantages of AOI include:

• High-speed inspection: AOI systems can inspect large quantities of parts rapidly without slowing down the production line.
• Improved defect detection: Machine vision technology can detect scratches, dents, warping, and surface inconsistencies that may be difficult to identify manually.
• Real-time monitoring: Integrated production-line systems allow defects to be detected immediately, enabling quick corrective actions.
• Consistent inspection standards: Automated systems reduce human error and ensure consistent inspection results across batches.
• Data traceability: AOI software can generate inspection reports and store defect data for quality tracking and process improvement.

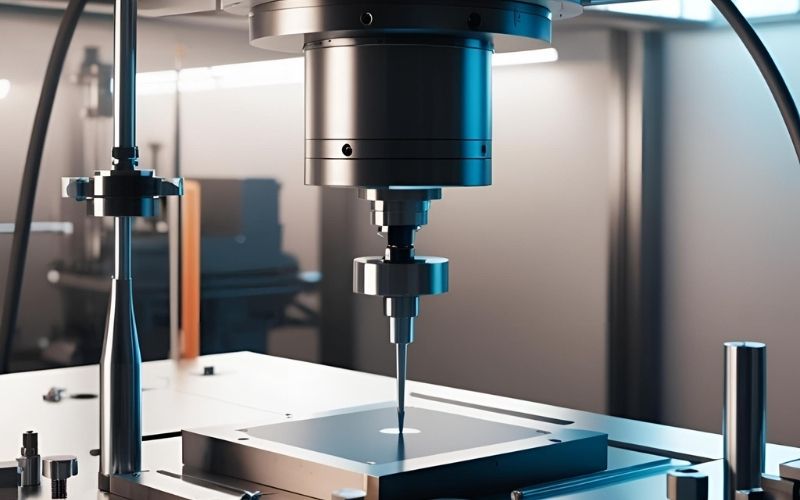

Coordinate Measuring Machines (CMMs)

Coordinate Measuring Machines (CMMs) are highly precise inspection systems used to verify the dimensional accuracy of manufactured components. By using a probe to measure specific points on a part’s surface, CMMs can capture exact coordinate data and compare it with the original design specifications. This ensures that fabricated sheet metal components meet the required tolerances and fit properly during assembly. Key capabilities of CMM inspection include:

• Extremely high measurement accuracy: Capable of detecting very small dimensional deviations.
• Verification of complex geometries: Ideal for parts with intricate features, hole patterns, and bend angles.
• Automated inspection programs: Repeatable measurement routines ensure consistent inspection results.
• Direct CAD comparison: Measurement data can be automatically compared with 3D CAD models.
• Quality documentation: Detailed inspection reports support traceability and compliance with quality standards.

Laser Scanning and 3D Measurement

Laser scanning and 3D measurement technologies allow manufacturers to perform highly accurate, non-contact inspections of sheet metal components. By projecting laser beams onto the surface of a part and capturing thousands of measurement points, these systems generate detailed 3D models that can be compared directly with the original CAD design. This method is especially useful for detecting deformation, dimensional variation, or assembly misalignment in complex sheet metal structures. Important benefits of laser scanning and 3D measurement include:

• Non-contact measurement: Laser scanners measure components without physically touching the surface, preventing potential damage to delicate parts.
• High precision and detail: Thousands of data points are captured to create highly accurate digital models of fabricated parts.
• Efficient inspection of complex geometries: Ideal for parts with multiple bends, curves, or intricate shapes.
• Fast comparison with CAD models: Engineers can quickly identify dimensional deviations through digital inspection software.
• Enhanced process feedback: Measurement data can be used to adjust forming, bending, or welding processes to improve overall accuracy.

Statistical Process Control (SPC)

Statistical Process Control (SPC) is a data-driven approach used to monitor and control manufacturing processes to maintain consistent product quality. Instead of relying solely on final inspection, SPC focuses on collecting and analyzing data throughout the fabrication process to detect variations before defects occur. By identifying trends or deviations early, manufacturers can make adjustments to machines, tooling, or materials to maintain stable production conditions. Key components of SPC in sheet metal fabrication include:

• Control charts: Used to track variations in measurements such as bend angles, hole positions, or material thickness.
• Process monitoring: Continuous data collection helps identify abnormal trends or shifts in production processes.
• Root cause analysis: Engineers can determine whether variations are caused by machine calibration, tool wear, or material inconsistencies.
• Process optimization: SPC data enables manufacturers to refine production parameters and improve efficiency.
• Reduced defect rates: Early detection of variations helps prevent large batches of defective parts.

Non-Destructive Testing (NDT)

Non-Destructive Testing (NDT) refers to a group of inspection methods used to evaluate the structural integrity of materials and components without causing damage. In sheet metal fabrication, NDT is particularly valuable for detecting internal defects that cannot be identified through visual or dimensional inspection. These methods are widely used in industries where reliability and safety are critical. Common NDT techniques used in metal fabrication include:

• Ultrasonic testing: Uses high-frequency sound waves to detect internal cracks or voids in metal structures.
• Radiographic (X-ray) inspection: Produces detailed internal images of components to identify hidden defects.
• Magnetic particle testing: Detects surface and near-surface cracks in ferromagnetic materials.
• Dye penetrant inspection: Reveals fine surface cracks that may not be visible during visual inspection.
• Weld integrity evaluation: Ensures welded joints meet structural and safety requirements.

How Quality Control Prevents Common Defects in Sheet Metal Fabrication?

Here are typical issues that QC helps catch before they reach the customer:

Common Defects	Cause	Quality Control Measures
Warping	Excessive heat during welding or cutting	Implementing proper heat control, using fixtures to hold parts in place, and employing controlled cooling techniques
Surface Scratches	Mishandling during processing or finishing	Applying protective films, using non-abrasive handling tools, and performing thorough inspections before packaging
Dimensional Inaccuracy	Poor machine calibration or material expansion	Regular calibration of equipment, employing precision measuring tools, and using CAD verification techniques
Weak Weld Joints	Incorrect welding parameters or contamination	Conducting non-destructive weld testing, ensuring proper material cleaning before welding, and using advanced robotic welding systems
Coating Defects	Uneven application of powder coating or anodizing	Using automated coating systems, conducting thickness testing, and performing adhesion and corrosion resistance tests

Industry Standards and Compliance

Following international and regional standards is important for making sure products are reliable and safe. Several rules and guidelines help control quality in sheet metal fabrication, including:

• ISO 9001: This internationally recognized standard defines the requirements for a quality management system (QMS). It demonstrates a fabricator’s commitment to consistent quality and continuous improvement.
• AS9100: A specialized QMS standard for the aerospace industry, with even more stringent requirements than ISO 9001.
• ASTM Standards: These standards define the properties and testing methods for various materials, including sheet metal. Examples include ASTM A36 for structural steel and ASTM A240 for stainless steel, ensuring consistent material quality.
• AWS Standards: The American Welding Society (AWS) provides standards for welding procedures, welder qualifications, and weld inspection. Adherence to AWS standards, such as AWS D1.1 (Structural Welding Code – Steel), ensures the integrity and safety of welded joints.

Conclusion

Quality control in sheet metal fabrication is a comprehensive approach involving meticulous material selection, precise machining, adherence to industry standards, and advanced testing methods. By implementing robust QC measures, companies can reduce defects, improve efficiency, and enhance customer satisfaction. As technology advances, embracing automation, AI-driven inspections, and continuous improvement strategies will be crucial for maintaining competitiveness in the sheet metal fabrication industry.
