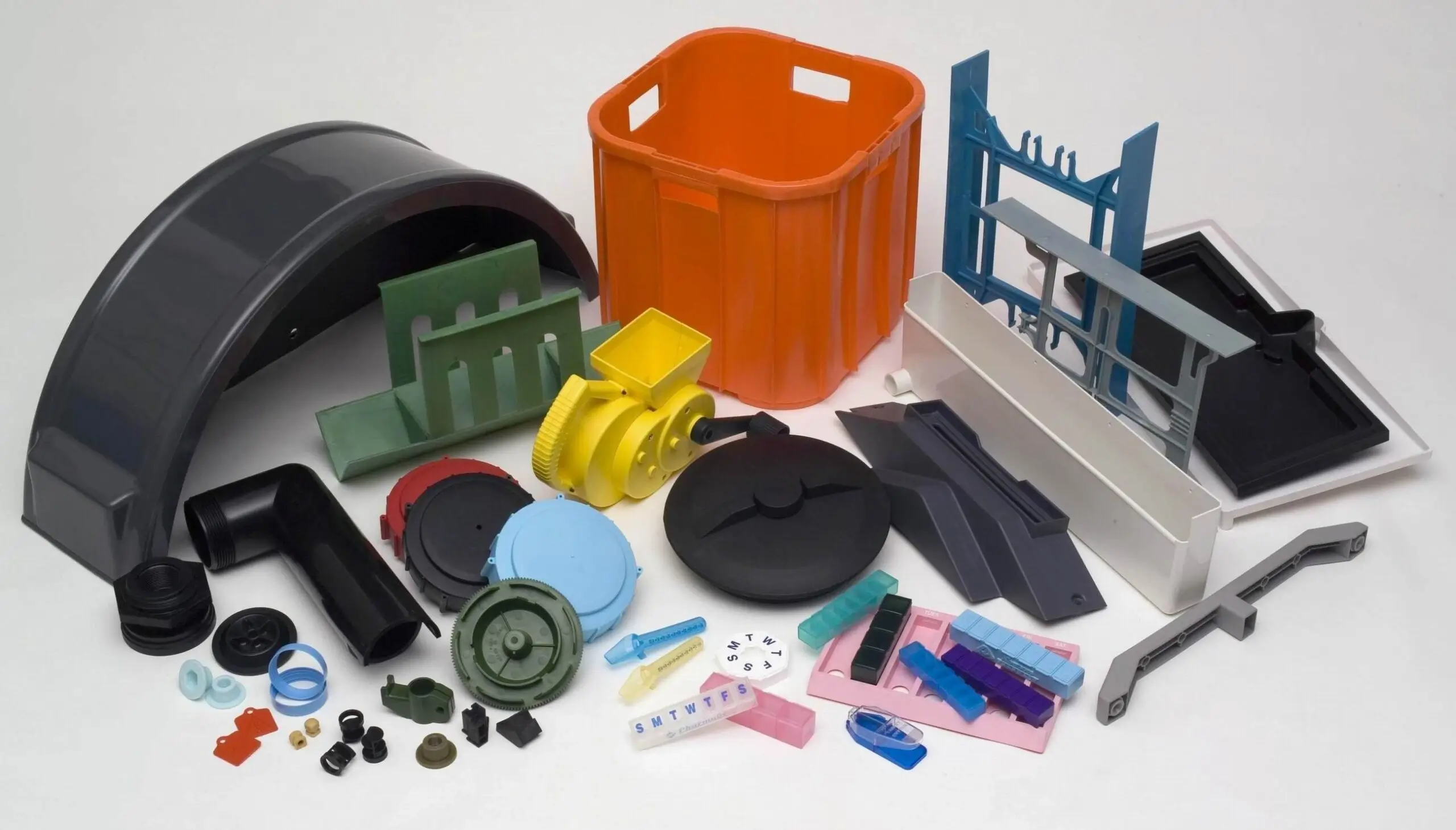

Plastic Injection Molding

Plastic injection molding is a great production method because it is inexpensive and has a strong breakage resistance. No matter the size or scope of your project, we have the relations to subcontract your product to our reliable Vietnamese supplier network. From automotive and medical parts to electronics and solar.

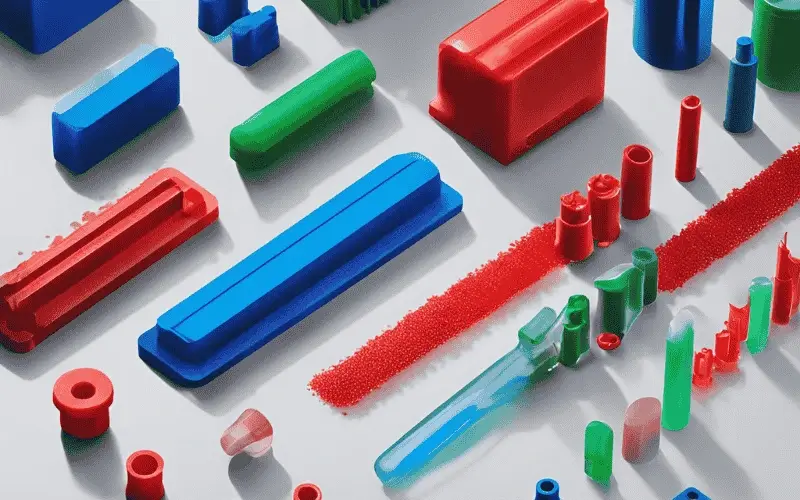

Common Thermoplastics Used In Injection Molding

Injection molding is a widely used manufacturing process, and selecting the right thermoplastic material is crucial for achieving desired product properties. In this section, we will explore some of the most commonly used thermoplastics in injection molding and their unique characteristics.

ABS

ABS (Acrylonitrile Butadiene Styrene) is one of the most prevalent thermoplastics in injection molding, known for its excellent impact resistance and toughness. Its properties include:

• High Impact Resistance: ABS can withstand significant stress without breaking, making it suitable for various applications, from automotive parts to consumer goods.
• Good Dimensional Stability: This material maintains its shape over time, essential for precision components.
• Easy to Paint and Plate: ABS can easily be coated with metals or paints, enhancing its aesthetic and functional properties.

However, ABS has limitations. It does not perform well in environments requiring high chemical resistance or UV protection, which can limit its use in certain applications. Additionally, ABS is not recommended for food contact applications due to potential health risks.

Celcon (Acetal)

Celcon, a common brand name for Acetal, offers excellent surface lubricity, creep resistance (memory), and chemical solvent resistance. Ideal for food and beverage, mechanical, automotive, and household applications, this is our resin of choice for manufacturing K’NEX toy parts, as well as gears and bearings. It’s also often used in automotive applications and household appliances. It should not be used for applications in high-heat environments.

Polypropylene (PP)

Polypropylene is known for its flexibility in packaging, fluid management and processing, and household goods, as well as some automotive applications. While polypropylene is flammable and vulnerable to UV radiation, it still offers good resistance to chemical solvents and electricity. Most grades of Polypropylene are flammable and degraded by UV radiation.

High Impact Polystyrene (HIPS)

High Impact Polystyrene (HIPS) provides tough, low-cost performance and highly customizable surfaces: it can be printed, glued, bonded, and decorated easily. This material is especially popular in merchandising applications and displays, printed graphics and prototypes. Although flammable, flame-retardant varieties are available.

Low-Density Polyethylene (LDPE)

The most flexible version of polyethylene, LDPE, offers moisture resistance and high impact strength. You can find LDPE in many consumer goods, housewares, medical products, and electronic wiring. However, it can be difficult to bond and isn’t suitable for harsh weather or high-temperature applications.

Key Factors to Consider When Choosing an Injection

Molding Material

To ensure you select the right resin for your project, keep in mind the following variables:

Impact Strength

Evaluate the required impact strength based on the application. Materials like ABS and HIPS provide excellent durability, while others may need to be assessed for their suitability based on specific stress conditions.

Tensile Strength

Understand the ultimate tensile strength of the material, which indicates its resistance to tension. This is essential for components expected to bear loads without failure.

Flexural Modulus of Elasticity

This property measures how much a material can bend without damage. For applications requiring flexibility, materials like LDPE and PP may be ideal.

Heat Deflection

For projects requiring heat resistance, knowing the heat deflection temperature is vital. This factor determines the material’s performance under varying temperature ranges.

Water Absorption

Consider the material’s water absorption rate, especially for applications exposed to moisture. Materials with lower absorption rates are preferable for water-sensitive environments.

Advantages of Plastic Injection Molding

Plastic injection molding provides several advantages, including:

High-Production Volumes

Plastic injection molding excels at producing large quantities of parts quickly and consistently. The cycle times are typically short, leading to high production rates and reduced costs per unit, especially for large-scale projects.

Complex Geometries

The process can create parts with intricate shapes, fine details, and varying wall thicknesses that would be challenging or impossible to achieve with other manufacturing methods. This design flexibility allows for greater innovation and product differentiation.

Cost-Effective

The high production rates, automation potential, and minimal material waste contribute to injection molding’s cost-effectiveness, making it an attractive option for businesses of all sizes.

Material Variety

A wide range of thermoplastic and thermosetting materials can be used in injection molding, each with unique properties to suit specific applications. This material diversity enables manufacturers to tailor parts to meet precise performance requirements.

Strong and Durable Parts

Injection-molded parts exhibit excellent strength, stiffness, and impact resistance, ensuring durability and longevity in demanding environments.

Why Choosing ABC Vietnam for Your Die Casting Needs?

We organize the production of Injection molding parts for the following industries:

• Appliance manufacturing such as universal phone adapters
• Parts to make automotive covers
• Medical products
• Marine products
• Machine parts
• Mechanical parts
• Plastic Toys
• Keyboard keys
